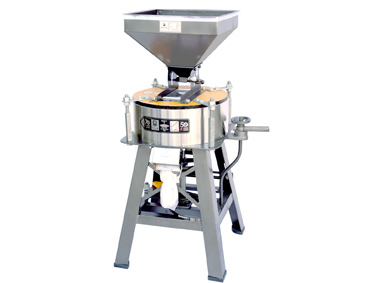

Horizontal Type Flourmill

This State of Art flour mills are ideal for domestic as well as commercial use. They are designed to grind spices, herbs, minerals, pea, sugar, coffee, cereals and grains with a desired consistency in the coarseness. Built with heavy duty Mild Steel and Stainless Steel, these machines are exceptionally durable, long-lasting and easy to operate.

At the heart of every Somani Industries flour mill is our specially engineered emery stone, manufactured entirely in-house with a patented design. This complete control over production along with specialised design guarantees consistent quality and superior grinding performance. This exclusive component, combined with the advanced features of our flour mills, distinguishes us, making them the preferred choice for customers who value durability and efficiency.

Amongst the main features of this machinery, few of them are:
The use of cast iron and stainless steel ensures longevity of the machinery keeping it safe from rusting issue and adding extra strength. The iron hopper stand provides a sturdy support to the complete structure with its extra thickness. The adjustment wheel comes with various tuning mode giving options for fixing the coarseness level and pressure required to the item used for grinding.

Speciality

Horizontal Janta Type

Models and Specifications
Size 350 mm (14") 400 mm (16") 450 mm (18")
Hopper Capacity 15 Kgs. 20 Kgs. 20 Kgs.
Bearing Size / No. 6203-1,6206-2,Taper Roller - 1 6203-1,6206-2,Taper Roller - 1 6203-1,6206-2,Taper Roller - 1
Shaft Diameter 30mm 30mm 30mm
Diameter of Pulley 10” x 1B
8” x 2 in 1
10” x 2B
10” x 2 in 1
10" x 2B
10" x 2 in 1
Approx Net Weight 70-75 Kg 95-100 Kg 110-120 Kg
R.P.M. Required 425-630 500-720 500-720
H.P. Required 2/3 HP(SP) 3/5 HP(SP/TP) 5/7.5 HP(TP)
Output 30-60 kg 45-70 kg 60-90 kg
Material MS + C I + SS MS + C I + SS MS + C I + SS
